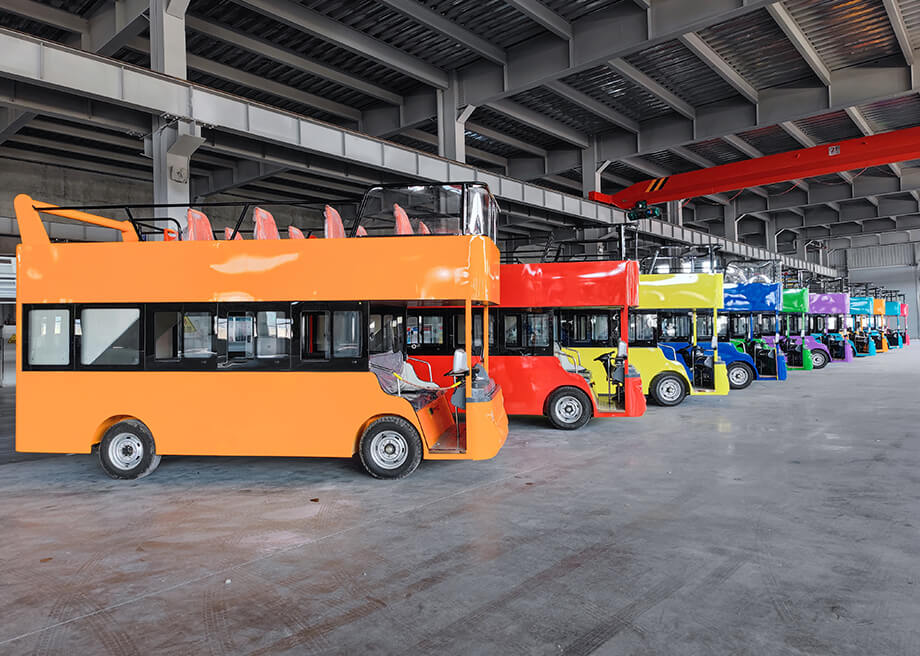

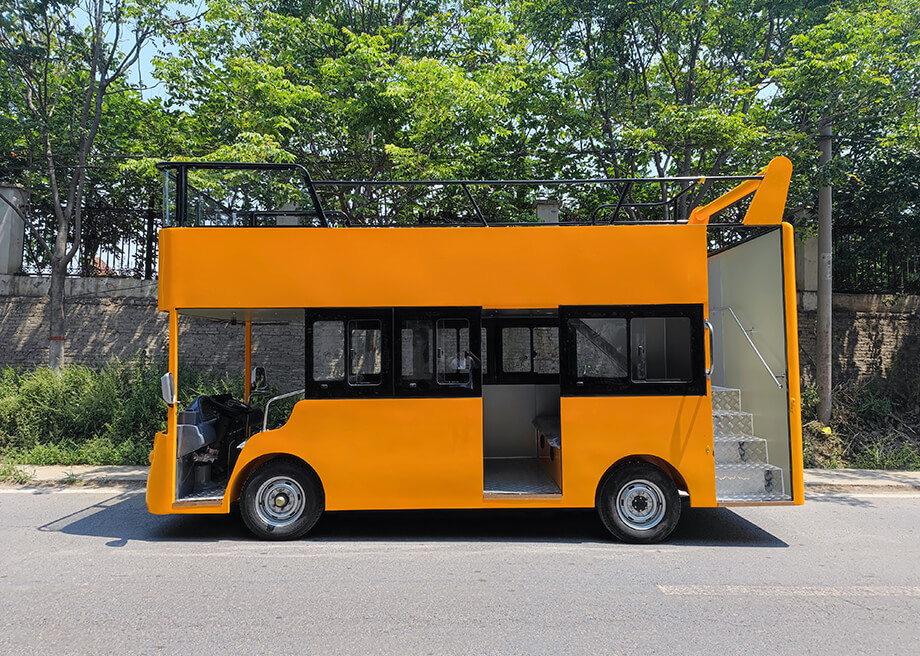

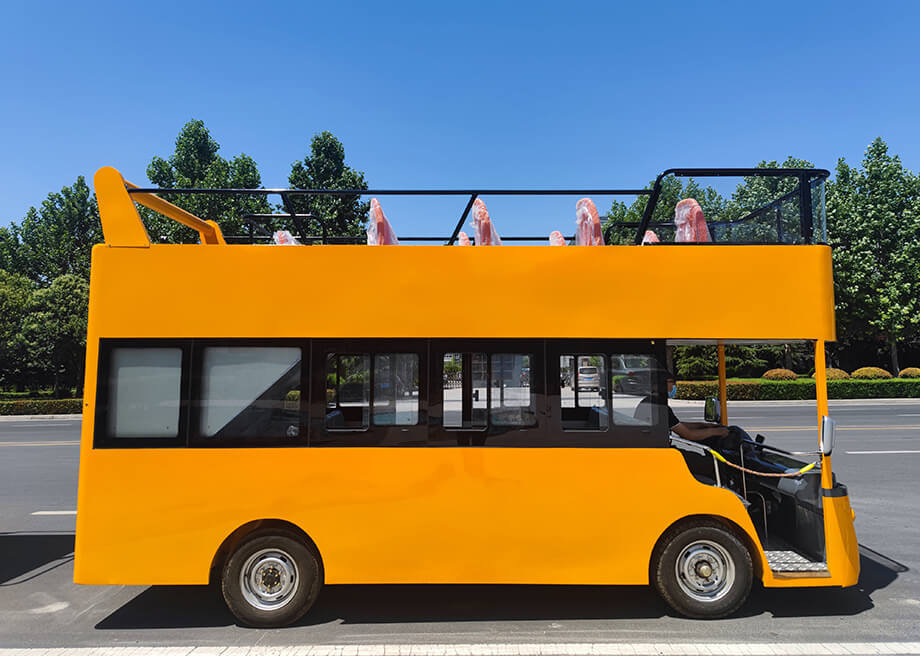

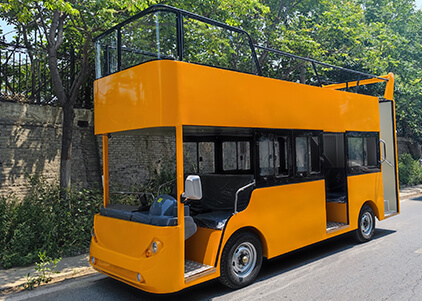

Sanchuan double decker sightseeing bus has a reasonable appearance design. It is a popular travel sightseeing vehicle in the market.
The power system can choose electric or fuel based on customer’ demands.
Mature chassis production, sturdy and stable.
The driving operation steps are simple, with steering wheel assistance, and the entire vehicle is easy to handle.
The humanized seat design provides a comfortable driving experience.
The driving operation is simple, and brake assistance ensures smooth driving on the road while also ensuring safety performance.
| Model: | JQGGC-SCGGC-17D/R |
| Passenger capacity | 18 seats |
| Max.Speed | 20km/h |
| Mileage(loaded) | 60-80km |
| Braking Distance | ≤6.5m |
| Min.Turning Radius | 7.5m |
| Recharge time | 8~10h |
| Working voltage (V) | 72 |
| Rated power (KW) | 7.5/70 |
| Climbing slope (%) | <10 |
| Drive Power | Electric/Fuel |
| Speed regulation | CVT/manual gear 5+1 |
| Tire | Tubeless tire |
| Battery | Lead-acid battery |
| L×W×H | 5390×1710×3060mm |
| F/R Tread | 1470/1380mm |
| Axle Distance | 3000mm |
| Curb Weight | 2000KGS |
